Membrane electrolysis cell stack electrochemical cell

Model: MEA-05

• This electrolytic cell can achieve higher voltage and power performance by stacking individual flow plates, it can be used for research-oriented testing of electrochemical processes such as carbon dioxide reduction, water electrolysis and organic electromechanical synthesis.
• The channel plate of the cell body is made of high-purity titanium material, the other different materials, such as high-purity nickel and PEEK, can be customised according to customer needs.

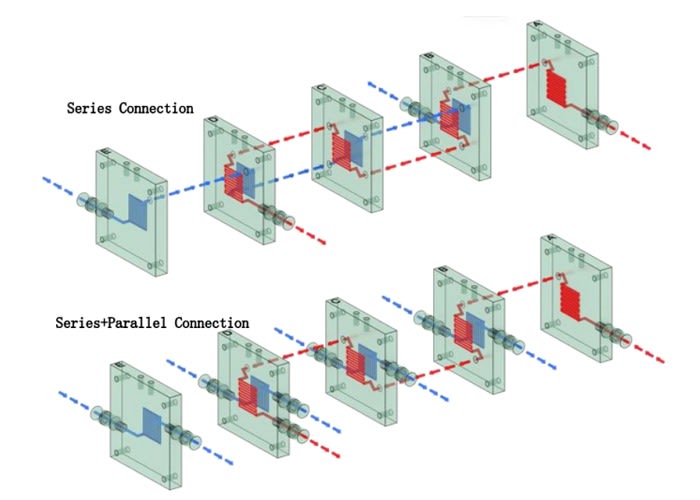

• The runner board adopts hidden channels, it supports series connection, parallel connection, or series + parallel connection combinations.
• The MEA cell plate is equipped with heating and temperature measurement holes for electrochemical testing under temperature control conditions.
• The collector plate is made of gold-plated copper plate, which has strong corrosion resistance.
• The available reactor type: serpentine channel, parallel channel or leaf vein channel, the other customised channel types are also acceptable, such as spiral, mesh, comb, etc.
