In-situ Raman Battery Test cell (2-electrode+ventilation+cathode protection)
In-situ Raman Battery Test cell (2-electrode+ventilation+cathode protection)
Model
REC 09

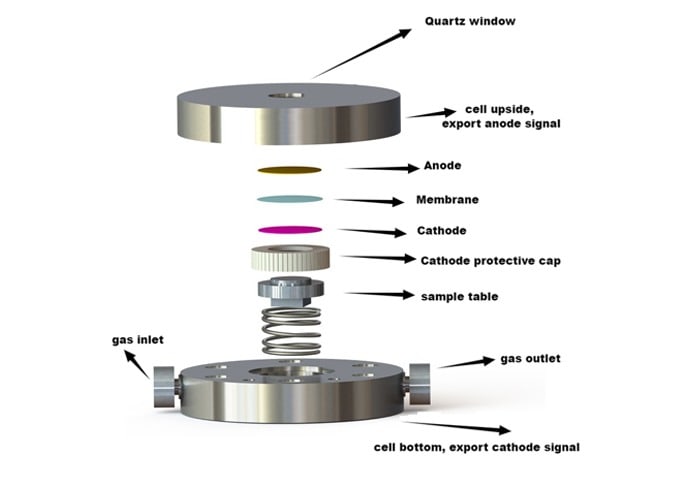

Material
- Cell main part: SS316
- Sealing part: PTFE, Fluororubber
- Window plate material: Quartz
Feature
- Available to ventilate and test under gas circulation conditions
- The cathode membrane protection can reduce the wastage of cathode side and effectively prolong experiment time
Technical Specifications
Precision engineering for accurate measurements
| External size | Ø54*19mm |
|---|---|
| Quartz window effective size | Ø5, Ø8 or Ø10 |
| Distance between specimen and window | 0.3mm |
| Window plate thickness | 0.5mm |
| Suitable specimen installation size | Ø12- Ø16 ( for Ø5mm window); Ø15 – Ø16 (for Ø8mm window) |
| Inner chamber diameter | Ø16 |
