<h2>Overview of Battery Cycler Accessories</h2>
<p>Battery cycler accessories are essential for ensuring reliable, precise, and flexible connections during battery testing. These accessories accommodate various battery formats such as coin cells, pouch cells, and cylindrical cells and support different testing requirements, from simple charge/discharge cycles to advanced formation and capacity measurements.</p>
<h2>Key Accessories and Their Functions</h2>

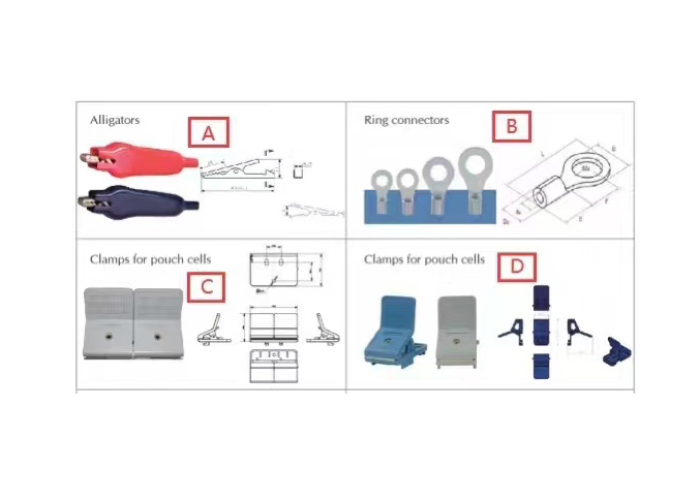

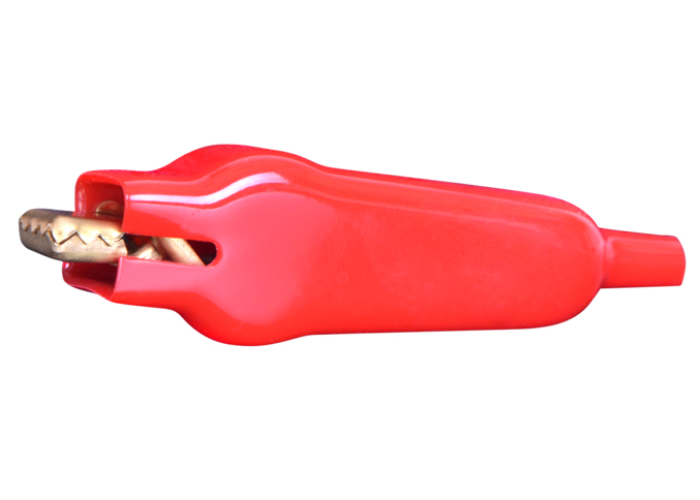

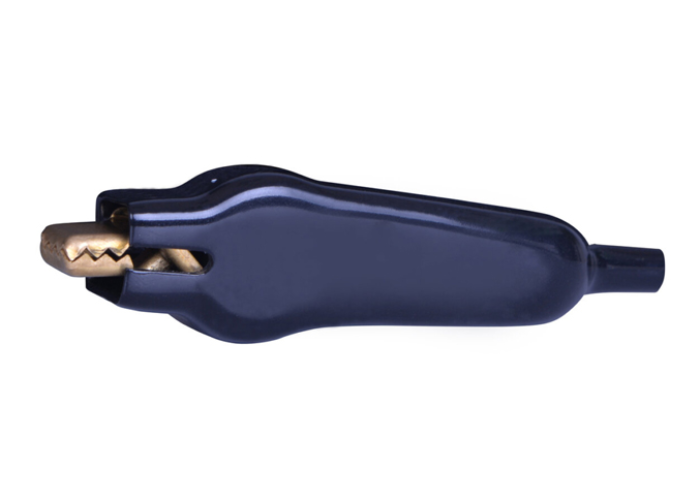

<h3><a title="Alligator Clamp" href="../alligator-clamp" target="_blank" rel="noopener">Alligator Clamp</a></h3>
<ul>
<li>Used for quick, secure connections, especially in applications requiring frequent connection and disconnection, such as battery testing and circuit prototyping.</li>
<li>Suitable for connecting to a wide range of battery terminals due to their versatile jaw design.</li>
</ul>
<h3><a title="Clamp Holder" href="../clamp-holder" target="_blank" rel="noopener">Clamp Holder</a></h3>
<ul>
<li>Provides stable support for clamps and cells during testing.</li>
<li>Ensures consistent contact and positioning, which is critical for accurate measurements.</li>
</ul>
<h3><a title="Coin Cell Clamp" href="../coin-cell-clamp" target="_blank" rel="noopener">Coin Cell Clamp</a></h3>
<ul>
<li>Specifically designed for coin cell batteries, these clamps ensure precise and stable connections during charge/discharge testing, often at low currents (mA range).</li>
<li>Many holders allow simultaneous testing of multiple coin cells for higher throughput.</li>
</ul>
<h3><a title="Polymer Clamp" href="../polymer-clamp" target="_blank" rel="noopener">Polymer Clamp</a></h3>
<ul>
<li>Used for pouch cell (polymer) batteries, these clamps facilitate secure connections for charge/discharge cycling, formation, and capacity tests.</li>
<li>Available in different versions to handle varying current levels and pouch cell sizes.</li>
</ul>
<h3><a title="Ring Connector" href="../ring-connector" target="_blank" rel="noopener">Ring Connector</a></h3>
<ul>
<li>Provides a robust and stable connection, minimizing contact resistance between the battery terminal and the testing equipment.</li>
<li>Often used in setups where vibration or movement could otherwise disrupt the connection.</li>
</ul>
<h3><a title="Toggle Clamp" href="../toggle-clamp" target="_blank" rel="noopener">Toggle Clamp</a></h3>
<ul>
<li>Designed for cylindrical cells, toggle clamps offer firm fixation during charge/discharge testing, voltage measurement, and formation processes.</li>
<li>Ensures repeatable contact pressure, which is important for consistent test results.</li>
</ul>
<h2>Examples of Commercial Battery Cycler Accessories</h2>
<table class="table table-bordered" style="width: 1072px; height: 180px;">
<thead class="table-light">
<tr>
<th>Accessory Type</th>
<th>Typical Use Case</th>
<th>Notable Features</th>
</tr>
</thead>
<tbody>
<tr>
<td><a title="Alligator Clamp" href="../alligator-clamp" target="_blank" rel="noopener">Alligator Clamp</a></td>
<td>General battery testing, circuit fabrication</td>
<td>Quick, versatile connection</td>
</tr>
<tr>
<td><a title="Clamp Holder" href="../clamp-holder" target="_blank" rel="noopener">Clamp Holder</a></td>
<td>Supporting clamps and cells</td>
<td>Stable support, modular compatibility</td>
</tr>
<tr>
<td><a title="Coin Cell Clamp" href="../coin-cell-clamp" target="_blank" rel="noopener">Coin Cell Clamp</a></td>
<td>Coin cell charge/discharge testing</td>
<td>Low current, multi-cell holders are available</td>
</tr>
<tr>
<td><a title="Polymer Clamp" href="../polymer-clamp" target="_blank" rel="noopener">Polymer Clamp</a></td>
<td>Pouch cell cycling and formation</td>
<td>Handles various pouch sizes, high current</td>
</tr>
<tr>
<td><a title="Ring Connector" href="http://staging.sciencegears.com.au/ring-connector" target="_blank" rel="noopener">Ring Connector</a></td>
<td>Secure battery-terminal connections</td>
<td>Stable, low-resistance contact</td>
</tr>
<tr>
<td><a title="Toggle Clamp" href="../toggle-clamp" target="_blank" rel="noopener">Toggle Clamp</a></td>
<td>Cylindrical cell testing (e.g., 18650, 26650)</td>
<td>Firm fixation, repeatable pressure</td>
</tr>
</tbody>
</table>
<h2>Additional Notes</h2>
<ul>
<li>Many battery cycler systems offer modular holders and clamps to accommodate different battery sizes and types, enhancing flexibility in R&amp;D and production environments.</li>
<li>Accessories such as 4-point connection holders are favored for their ability to reduce measurement errors caused by contact resistance, especially in high-precision or high-current applications.</li>
<li>Universal holders are available for testing multiple cell formats (e.g., coin, cylindrical, pouch) with a single accessory, streamlining laboratory workflows.</li>
</ul>
<h2>Conclusion</h2>
<p>Battery cycler accessories are integral to achieving accurate, reliable, and efficient battery testing. The choice of accessory depends on the battery type, current range, and specific testing requirements, with modularity and precision being key considerations for advanced battery research and development.<br /><br /></p>
<h2>Frequently Asked Questions (FAQs)<br /><br /></h2>
<p><strong>1. Why are insulated alligator clamps important for battery testing?<br /></strong>Insulated alligator clamps prevent accidental short circuits and provide safe, secure connections capable of handling high currents, ensuring both safety and accurate testing results.</p>
<p><strong>2. What types of batteries do polymer clamps support?<br /></strong>Polymer clamps are specifically designed for pouch or polymer batteries, providing secure connections without damaging the flexible battery casing, suitable for a range of sizes and current ratings.</p>
<p><strong>3. How do battery cycler accessories improve testing accuracy?<br /></strong>They provide stable electrical connections that minimize signal loss and electrical noise, leading to precise voltage and current measurements during battery cycling.</p>
<p><strong>4. Can battery cycler accessories be used for different battery sizes?<br /></strong>Yes, adjustable clamp holders and specialized clamps accommodate a wide variety of battery formats, including coin cells, cylindrical cells like 18650, pouch cells, and prismatic batteries.</p>
<p><strong>5. Which brands are recommended for high-quality battery cycler accessories?<br /></strong>NEWARE &amp; Admiral Instruments are reputable brands known for their reliable, insulated, and high-current capacity battery cycler accessories suitable for professional applications.</p>
<p>For more information on battery cycler accessories and to explore the best options for your testing needs, feel free to reach out or browse our extensive catalog of premium products designed to optimize your battery testing workflow.</p>

<div class="container_wrap container_wrap_first main_color sidebar_right template-shop shop_columns_3">
<div class="container">
<div id="product-649" class="product type-product post-649 status-publish first instock product_cat-battery-cycler-accessories has-post-thumbnail shipping-taxable product-type-simple">
<div class="single-product-summary">
<div class="woocommerce-tabs wc-tabs-wrapper">
<div id="tab-description" class="woocommerce-Tabs-panel woocommerce-Tabs-panel--description panel entry-content wc-tab" role="tabpanel" aria-labelledby="tab-title-description">
<p align="left">Suitable for applications that require connection and fixation, such as battery testing and circuit fabrication.</p>
